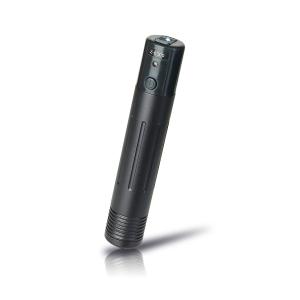

Z-6300 LED Torch Light Guard Patrol RFID Reader Handheld Kit for Guard Management
Special function:LED Flashlight function
Read method:Automatic induction and Non-touch reading of RFID tag.
Metal structure:Metal casing, waterproof, durable, resistant to high and low temperature.
Support language:Support simplified and traditional Chinese, English, French and other languages
Card-reading Technology:Switzerland EM induction card-reading technology
Storage Capacity:Data storage up to 7200 records.
Safety:Data can be stored for 30 years without power.
Fast download:Downloading all the data only need 180 seconds
Communication：USB
Z-6300 LED Torch Light Guard Patrol RFID Reader Handheld Kit for Guard Management
Technical information:
Read method | RFID Auto- induction card reading |
Storage Capacity | 7200 PCS |
Special function | LED FLASH, can be used as a torch for lighting |
Dimension | 140mm*Φ29mm |
Net Weight | 105g |
Read response | ＜0.1S |
Read distance | 3cm to 5cm |
Direction | LED + vibration |
Working temperature | -20°C to 70°C |
Working humidity | 30% to 95% |
Working frequency | 125KHZ |
Battery | 3.6V chargeable lithium battery |
Power consumption | 30mA |
Communication | USB cable |
Communication baud rate | 19200Bps |
Standardized Accessory | Lithium battery, Communication Cable, Charger, Leather case, Software. |
Software support Language | English, French, Turkish etc. |
How to use ?
Take the Z-6300 guard tour patrol wand, and scan your ID card to login as the current user. Along the regulated patrol route; use the device to read the spot by approaching the device to the spot card. The check time and spot card ID will be stored into the device. Then you can download the data from the device with USB cable. The patrol system software can deal with the data and display or print the result of the report. There is a LED light with the device; you can use it as a torch. It can help you to walk in the night.
